Desenho de Mangueira de Silicone

Desenho de Mangueira de Silicone & Engineering Control

Engineering-Driven Custom Silicone Hose Development

Na HOTOP, silicone hose drawings are not only design documents — they are the foundation of controlled manufacturing, quality consistency, and project traceability.
All custom silicone hose projects are developed and managed through a structured engineering and quality system based on ISO 9001 principles, ensuring accuracy from drawing approval to mass production.

forma de mangueira de silicone

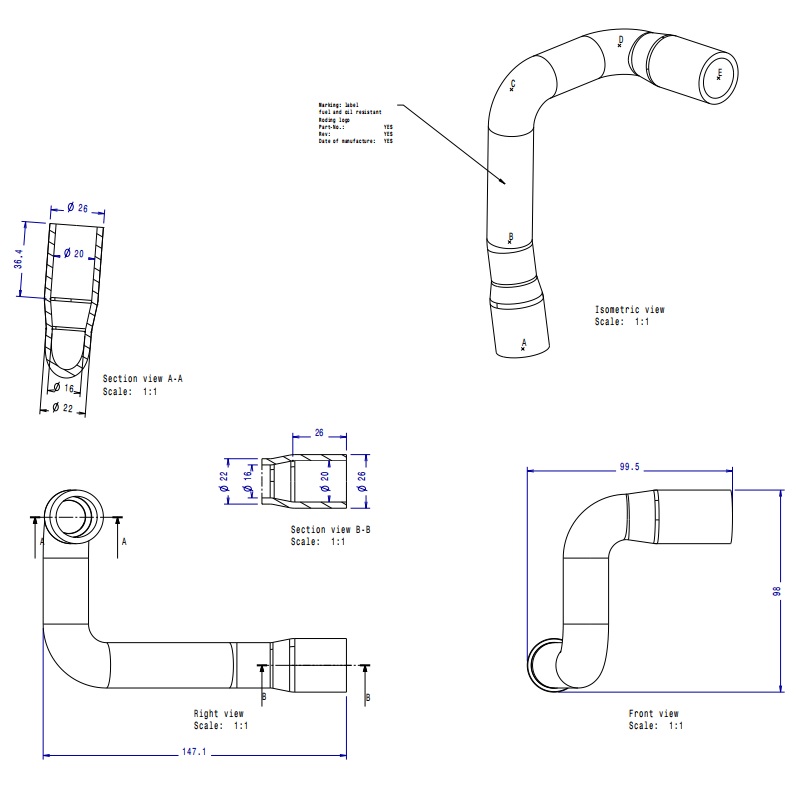

Engineering Drawing as the Manufacturing Baseline

Every custom silicone hose project begins with an engineering drawing that defines:

»Dimensions and tolerances

»Hose structure and reinforcement layers

»Material specifications

»Application and performance requirements

»Special process or inspection notes

Once approved, the drawing becomes the official manufacturing reference for sampling, Inspeção, and batch production.

CAD & 3D Drawing Support

Our engineering team provides professional drawing support based on customer input:

»Customer drawings (2D / 3D)

»Physical samples

»Application descriptions and functional requirements

We generate CAD and 3D models for dimensional confirmation and design validation, helping customers clearly verify structure and fit before tooling or production begins.

Engineering Workflow Based on APQP Principles

Our project execution follows a structured development process aligned with APQP methodology, ensuring controlled risk and stable outcomes:

»Requirement definition – application, desempenho, and regulatory needs

»Design review – drawing creation and feasibility evaluation

»Process planning – material, tooling, and manufacturing method definition

»Sample development – prototype or initial sample production

»Validação & approval – dimensional and functional confirmation

»Mass production readiness – controlled release to production

This approach ensures that potential risks are identified early and controlled before volume production.

desenho de mangueira de silicone

PPAP & Documentation Support (When Required)

For OEM and long-term supply projects, we can support PPAP-related documentation, Incluindo:

»Engineering drawings

»Material specifications

»Process flow and control records

»Dimensional inspection reports

»Sample approval records

All documents are managed under revision control to ensure consistency between approved samples and ongoing production.

First Article Inspection (FAI)

For new designs or revised drawings, First Article Inspection (FAI) is conducted to verify:

»Dimensional compliance to approved drawings

»Structural and material conformity

»Process stability for repeat production

FAI records serve as a baseline reference for future inspections and batch consistency.

ISO 9001 Based Quality & Document Control

Our engineering and drawing management operates within an ISO 9001-based quality management system, ensuring:

»Controlled document revisions

»Clear approval and release procedures

»Traceable project records

»Repeatable production standards

Each drawing revision, sample approval, and production release is documented to support long-term quality stability.

From Drawing Approval to Mass Production

Once the drawing and sample are approved:

»The drawing becomes the production master document

»Manufacturing processes are locked and standardized

»Quality inspections are performed against drawing requirements

»Batch traceability ensures repeatability over time

This system allows us to deliver consistent silicone hose products even for long-term or high-volume projects.

Aplicações Típicas

Our engineering drawing and documentation system supports projects in:

»Automotive cooling, entrada de ar, and turbo systems

»Industrial fluid and air transfer applications

»High-temperature or pressure-critical environments

»OEM replacement and aftermarket development

Why HOTOP Engineering Support

»Engineering-driven silicone hose development

»ISO 9001 based quality system

»APQP-aligned project execution

»PPAP & FAI support for OEM projects

»Controlled drawings and document traceability

amostra de mangueira de silicone para desenho 3D

Start Your Engineering Drawing Project

To begin a custom silicone hose project, you may provide:

»Existing drawings or CAD files

»Physical samples

»Application and performance requirements

O email: sales@silicone-hose.com
Tel: +86 136 6607 9418

Our engineering team will support you from drawing review to stable mass production.
